118kW 2300rpm Airport Apron Bus Xinfa Airport Equipment With Adjustable Seats

Detailed Product Description

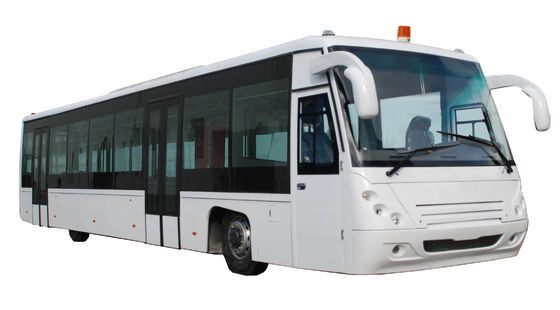

118kW 2300rpm Airport Apron Bus Xinfa Airport Equipment With Adjustable Seats



MAIN TECHNICAL PARAMETERS AND SPECIFICATIONS

AIRPORT APRON BUS



Aero ABus-5270



MAIN TECHNICAL PARAMETERS AND CONFIGURATIONS

AeroABus-5270



118kW 2300rpm Airport Apron Bus Xinfa Airport Equipment With Adjustable Seats

No.

Particulars

Specs

1.

Length × Width ×Height

13650mm×2700mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

6670mm

4.

Passenger accommodation capacity

Up to 77 passengers including thirteen (13) seats, in compliance with IATA specifications: four (4) Passengers per sqm

5.

Curb weight

12250kgs

6.

The varied height from passenger cabin floor sill to the ground level

270mm~340mm subject to embarkation and/or disembarkation of passengers

7.

Minimum turning radius

<13500mm

8.

Engine

4-strok, diesel engine





Basic:

DEUTZ BF4M1013-16E3, EUROIII, 118kW/2300rpm, ALLISON 2100

Option 1: DEUTZ BF4M1013-19E3, EUROIII, 140kW/2300rpm, ALLISON T270(with extra cost)

Option 2: CUMMINS ISDE180-30, EUROIII, 132KW/2500rpm,

ALLISON 2100





Normal rated power

118kW





Rated speed

2300 rpm





Discharge capacity

4764cc





Compression ratio

18.0





Intake mode

Turbo-charging intercooler





Exhaust emission

EURO III





Fuel consumption

≯215g/kwh

Less than 30Liter per 100 km





Dry weight

520kgs





Fire unit

Electromagnetic mechanism





Generator

28Volt





Starter

6 Kw, 24 Volt

9.

Battery

Battery (2 pcs):                 190H52 Lead-acid battery

10.

Transmission (standard)

Allison 2100 automatic transmission, electronic controlled.





Velocity ratio

Gear

ALLISON 2100

ALLISON T270





Gear 1

3.10

3.49





Gear 2

1.81

1.86





Gear 3

1.41

1.41





Gear 4

1.00

1.00





Reverse

4.49

5.03

11.

Volume capacity of vessels

Fuel tank volume

(120 + 80)liter





Anti-freeze fluid

20 liter





Engine lubrication system

14.2 litter





Gearbox lubrication system

18 liter





Main reduction gear of front axle and wheel rim reduction gear

10 liter





Front brake

N/A





Steering gear

5 liter

12.

Front axle (Driving axle)

MERCEDES BENZ 733.W14 (right-hand drive)

MERCEDES BENZ 733.W02 (left-hand drive)





King-pin angle of toe-in

King-pin caster angle         0°





Ratio of master drive:

7.633





Wheel rim velocity ratio

1

13.

Steering

SANHUAN, 3401ZB3-001H

14.

Rear axle

Specially manufactured high intensity curved axle

15.

Front tire (single tire)

BRIDGESTONE, 12R22.5

16.

Rear tire (twins)

BRIDGESTONE, 9.5R17.5

17.

Pneumatic suspension

GOODYEAR, 270~340mm, 6 nr. pneumatic suspension

18.

Seats

  1. Five(5)seats in front, Eight (8)seats on Rear Wheel location;
  2. Adjustable seats with seat belts for driver and co-driver

19.

Air conditioning in driver cabin

Model:  THERMOKING S30,

Cooling capacity: 8568Kcal/hour

20.

Air conditioning in passenger

compartment

Model: THEMOKING KRS1139A

Compressor: X430

Capacity: 36900Kcal/hour.

21.

Heating system for winter package (Option with extra cost)

Heater:

Model: [YJP-Q30/XT ]

30kW, independent fuel heater



Radiators:

Model: [SR-4X/13 ]

Power of motor: 100w

Voltage: 24 Volt

22.

[NOT USED]



23.

Defroster in driver's cabin

Model: [CS-13/01]

Motor: DC24V, 240W

Heat output: 7.5KW (when water temp. at 80°C)

24.

Audio

Radio + CD + MP3

(2 Speakers in Driver’s cabin, 8 speakers in Passenger’s cabin)

25.

Intercom system

  1. Public address system
  2. one (1) intercom system is installed at the middle door in the passenger cabin for communication with driver;
  3. Microphone is installed in front of co-drive position for communication between the passenger cabin as well as outside of the bus.

26.

IT Options

(with extra costs)

  1. CCTV monitoring system
  2. Flight Information Display system
  3. LCD Screens

27.

Passenger door system

  1. Four (4) pneumatic double opening doors;
  2. Four (4) doors can be separately operated via two (2) main control switches and four (4) sub-control switches, and the main switches and sub-control switches are deployed on the dashboard;
  3. Driven by Air cylinders and valves;
  4. An emergency safety hammer is installed at the right and left front door;
  5. The location of emergency switch for each door m should be accessible by following a adjacent instruction;
  6. When doors are open, the shift function is forbidden.
  7. Pneumatic pumps used to open the doors is installed inside the air duct;

28.

Driver cabin door

  1. Numbers: 02 nr.
  2. Articulated and outward opening single-leaf door, and each door uses the rod limit and lock mechanism;
  3. Water drainage gutter is installed in the upper part of each door.

29.

Emergency system 1

  1. The emergency switch for unlocking and opening passenger door is located above each door;
  2. The instruction is labeled beside emergency switch.
  3. The emergency switch for driver to open front passenger door is located on the dashboard;

30.

Emergency system 2

  1. Set the brake system discharge device by following the instruction labeled;
  2. The emergency cover on wheel cover should be sealed to prevent from waterproof;

31.

Emergency system 3

An emergency device for opening door is equipped on each door in the passenger cabin, when the device is activated, there is a voice alarm in the cabin;

32.

Windows in passenger cabin

Full size tempered glass panels mounted in the front and the back of passenger cabin.

33.

Rear air conditioning engine layout

  1. Oil supplied from front fuel tank;
  2. Noise and thermal insulation materials are posted on rear air conditioning cabin door and medial wall;
  3. A number of shaped orifices on the opening A/C compartment offer better ventilation, and allows heat air to be blown backward.;
  4. Setting oil port for rear air-conditioning units;
  5. Rubber plate is fixed inside the battery holder of air conditioning power pack, the battery are fixed in removable manner.

34.

Painting system

  1. Coating of entire body structure is processed in factory paint shop with fine surface treatment by applying putty, zinc epoxy primer, intermediate primer and  top coating with U.S. PPG painting products and accessorial materials;
  2. PPG brand polyurethane finish for top coating;

35.

Warning signs

  1. Switch buttons on instrument panel are labeled with indications in English language.
    Note: other languages are available at customer’s option;
  2. Safety warnings / indications  in English language
    Note: other languages are available at customer’s option;
  3. Warning signs in English language such as "Attention to Safety and Do Not Lean " are labeled on each door
  4. Warning label "Do Not Grip" in yellow font marked on the door hinge pole.

36.

Chassis

  1. Overall galvanized;
  2. Water-proof treatment for roof and other junction sections/parts;

37.

Rainwater drainage gutter

Installed on upper part of bus body

38.

Parking sensor and monitor

Included

39

Flooring

Anti-slip rubber floor

40.

Emergency button

  1. Standard red emergency button
  2. Installed on the dashboard; and immediate accessible on the right side of steering wheel
  3. In case of emergency action, only power supply for ventilator, automatic door and emergency flash lights are uninterrupted, Power supply for remaining devices shall be cut off, in meantime of which the engine shall be of immediate flameout.

41.

Roof positioning lights

  1. Two (2) white front, two (2) red rear
  2. When small light turns on, the roof positioning lights are always on.

42.

Fog lamps

  1. 21W, White front fog lamps;
  2. 21W, Rear fog lamps are red  with the same size of the front ones;

43.

Side lights

  1. Two (2) steering signal lights installed on each side of the front and rear of bus body,
  2. Five side lights are deployed on both sides of the body aluminum board;
  3. When small light turns on, the yellow side light is always turning on.

44.

Warning lights

Front and rear yellow flashing warning lights are installed on the roof

45.

Interior Lighting

  1. Driver’s cabin: Fluorescence Tube or LED Light on roof top;
  2. Passenger’s cabin: LED strips
  3. Passenger’s door: Spot light for each door.

46.

Emergency escape

  1. Four (4) numbers of indications and four (4) sets of escape hammer are equipped at the doors of passenger cabin for passenger’s emergency escape;
  2. A set of escape hammer and an indication are equipped in the driver’s cabin.

47.

Handrails and handgrip in bus

  1. All handrails in the passenger cabin are of the aluminum alloy;
  2. Besides handrails installed along the length of the passenger cabin, 66 sets of nylon strap handgrips (which can be served as advertising panels) attached along handrails above passengers are within arm’s reach for safety of passengers standing in the cabin.

48.

Instructions in detail

  1. The carpets  are covered
    • on both sides of separation panels between the driver cabin and the passenger area,
    • on the top of rear wheel room,
    • on the top of air-conditioning package in passenger compartment;
  2. Engine cover is equipped with noise absorbing mats;
  3. The fire extinguishers are equipped in driver cabin.
  4. The warning signs in English language on the each door;
  5. Engine exhaust direction can be diverted to keep passenger away from emissions subject to doors on whichever side are open;
  6. Aluminum alloy rod are installed on the top of the front seats back, on the top of rear wheel bag, and on the top of air-conditioning package in passenger cabin along the direction of vehicle width;
  7. Engine speed meter;
  8. Add transition steps to reduce the span at co-pilot side;
  9. Additional handle installed on cabin frame for easy embarkation/disembarkation;
  10. Electrical layout is labeled under the cover of electrical box.

49.

Assistance facilities for physical inconvenience passenger

One ramp for wheelchair is equipped in front door;

Designated area is also allocated for wheel chairs.

50.

Others

Configured according to the standard in the Civil Aviation Association Development Corporation
