Product Details:
Payment & Shipping Terms:
|
| Application: | Airport Passenger Transfer | Standard Passenger Seats: | Customized |
|---|---|---|---|
| Engine: | Cummins | Minimum Turning Radius: | 13m |
| Standing Area: | IATA Standard | ||
| High Light: | Airport Passenger Bus,airport coach |
||

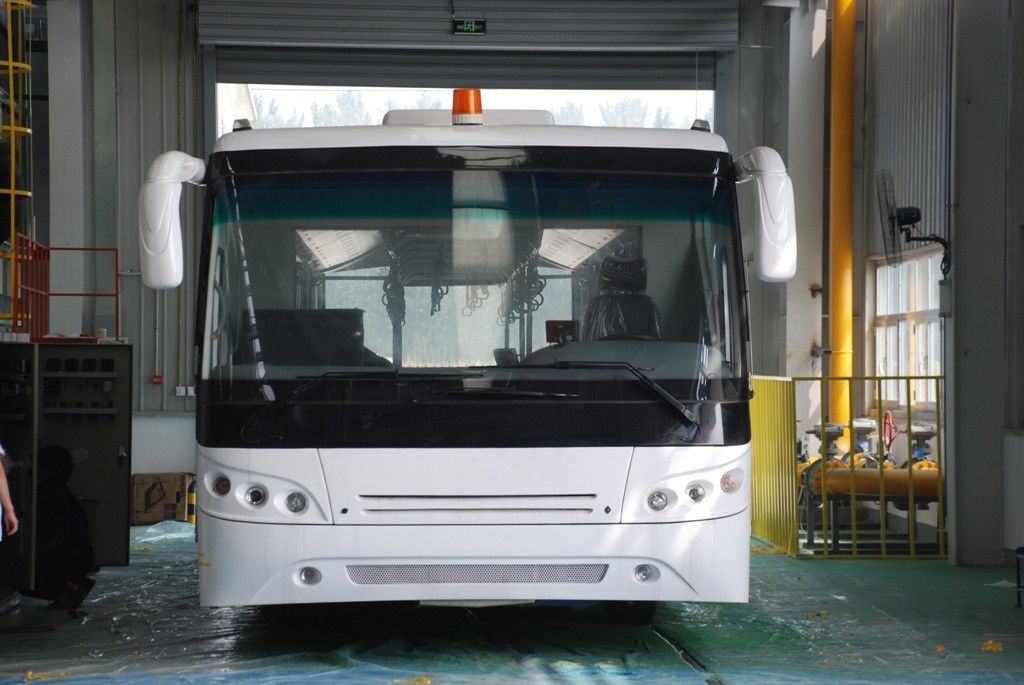

Xinfa Airport Equipment 3m Width 13m Length With Large Capacity Customized
Specification:
|
No. |
Particulars |
Specs |
|---|---|---|
|
1. |
Length × Width ×Height (external) |
13400mm(±20mm)×3000mm×3178mm |
|
2. |
Bus body |
Low carbon alloy steel body with aluminum apron; |
|
3. |
Wheel base |
6700mm |
|
4. |
Passenger accommodation capacity |
Up to 102 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm |
|
5. |
Curb weight |
12300kgs |
|
6. |
The varied height from passenger cabin floor sill to the ground level |
270mm~340mm subject to embarkation and/or disembarkation of passengers |
|
7. |
Minimum turning radius |
≯13500mm |
|
8. |
Engine |
4-strok, diesel engine |
Intercom system
Applications:
|
Business Organizations |
Airport, mining, sea port |
ABOUT US:
Since 1997, Xinfa has produced more than 550 units of apron buses.
- Xinfa was officially taken over by CIMC since 2012. Since then, it has produced and delivered more than 204 nr. apron buses, which means in the past 3+ years, new Xinfa produced near 60 units p.a. compared with annual production of circa. 23-30 units before takeover.
- Per territories as references summarized and extracted from our full worldwide reference:
Africa - we have sold 39 units to Africa including South Africa, Kenya, Mozambique, Liberia and Sudan
Europe – we have sold to 20 units to Italy, Spain and Russia
Australia – we have sold 23 units, operating in Sydney, Melbourne and Perth.
America – we have sold to Cuba
Asia- we have sold more than 170 units to Korea, Maldives, Vietnam, CIS, Pakistan, Kuwait, Indonesia, Thailand and Most all China’s Airport such as Bejing, Shanghai, Guangzhou, Hong Kong and Macau.
Nude package to suit for long distance marine transportation
