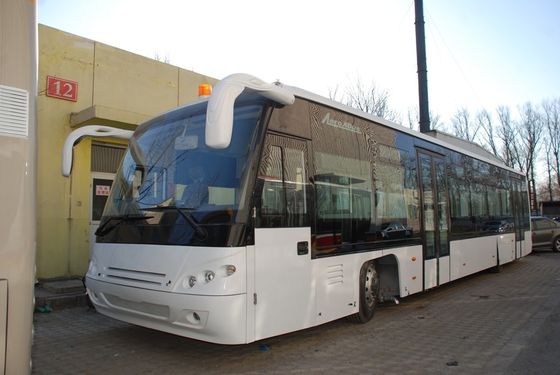

Aluminium Body 24 Seat 110 Passenger International Shuttle Bus Apron Bus

Aluminium Body 24 Seat 110 Passenger International Shuttle Bus Apron Bus
Aluminium Body 24 Seat 110 Passenger International Shuttle Bus Apron Bus

Large Image :  Aluminium Body 24 Seat 110 Passenger International Shuttle Bus Apron Bus

Product Details:
Place of Origin: China
Brand Name: Aero ABus
Certification: CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
Model Number: Airport Shuttle Bus 24 Seats
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Nude package to suit for long distance marine transportation
Delivery Time: 4 months, flexible
Supply Ability: 15 Units per month
Detailed Product Description
Application: Airport Facilities Standard Passenger Seats: 110
Engine: CUMMINS Minimum Turning Radius: 13m
Standing Area: IATA
High Light:

13 seater bus

,

international Airport Bus

Airport Shuttle Bus with 110 Passengers and 24 Seats





Quick Detail:



1.    Passenger doors on both sides

2.    More mobility and flexibility on the apron

3.    Competitive Price

4.    Aluminium body

5.    More than 18 years vehicle life time



Specification:



No.

Particulars

Specs

1.

Length × Width ×Height

13895mm(±20mm)×3000mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

7100mm

4

Battery

2 pcs

190H52 Lead-acid battery

5

Transmission

ALLISON 2100 automatic transmission, electronic controlled, or

ALLISON T270 automatic transmission, electronic controlled(with extra cost)





Velocity ratio

Gear

ALLISON 2100

ALLISON T270





Gear 1

3.10

3.49





Gear 2

1.81

1.86





Gear 3

1.41

1.41





Gear 4

1.00

1.00





Reverse

4.49

5.03

6

Volume capacity of vessels

Fuel tank volume

200 liter





Anti-freeze fluid

20 liter





Engine lubrication system

14.2 litter





Gearbox lubrication system

18 liter





Main reduction gear of front axle and wheel rim reduction gear

10 liter





Steering gear

5 liter

7

Front axle (Driving axle)

MERCEDES BENZ 733.W14 (right-hand drive)

MERCEDES BENZ 733.W02(left-hand drive)



Front wheel alignment

King-pin angle of toe-in

King-pin caster angle





Ratio of master drive:

7.633





Wheel rim velocity ratio

1

8

Steering

SANHUAN, 3401ZB3-001H

9

Rear axle

Specially manufactured high intensity curved axle

10

Front tire (single tire)

BRIDGESTONE, 12R22.5

11

Rear tire (twins)

BRIDGESTONE, 9.5R17.5





Intercom system

  1. Public address system
  2. one (1) intercom system is installed at the middle door in the passenger cabin for communication with driver;
  3. Microphone is installed in front of co-drive position for communication between the passenger cabin as well as outside of the bus.



Rear axle

Specially manufactured high intensity curved axle

Front tire (single tire)

12R22.5

Air conditioning in passenger

compartment

Model: THEMOKING
