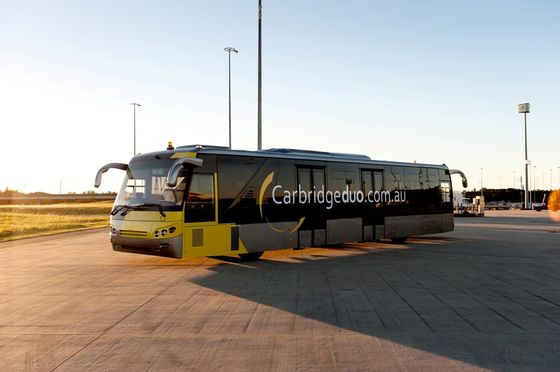

Full Aluminum Body Short Turn Radius Airport Limousine Bus Aero Bus

Full Aluminum Body Short Turn Radius Airport Limousine Bus Aero Bus
Full Aluminum Body Short Turn Radius Airport Limousine Bus Aero Bus

Large Image :  Full Aluminum Body Short Turn Radius Airport Limousine Bus Aero Bus

Product Details:
Place of Origin: China
Brand Name: Aero ABus
Certification: CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
Model Number: Aero Abus3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Nude package to suit for long distance marine transportation
Delivery Time: 3 months, flexible
Payment Terms: D/A, T/T, , L/C
Supply Ability: 22 Units per month
Detailed Product Description
Application: Airport Equipment Standard Passenger Seats: 77
Engine: Cummins Standing Area: N/A
Steping Height: 340
High Light:

luxury coach bus

,

international shuttle bus


 KG-B6300A14 Seats Full Aluminum Body 3000m Width Manufacturer Airport Limousine Bus


Description:


1.    Extraordinary transport capacity

2.    High efficient fleet management

3.    Shortest boarding times

4.    Short turn radius




Specification:


No.

Particulars

Specs

1.

Length × Width ×Height

13895mm(±20mm)×3000mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

7100mm

4.

Passenger accommodation capacity

Up to 110 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm

5.

Curb weight

12840kgs

6.

The varied height from passenger cabin floor sill to the ground level

270mm~340mm subject to embarkation and/or disembarkation of passengers

7.

Minimum turning radius

≯13500mm

8.

Engine

4-strok, diesel engine

Basic:


DEUTZ BF4M1013-16E3, EUROIII, 118kW/2300rpm, ALLISON 2100





Option 1:

Option 2:

Option 3:

Option 4

DEUTZ BF4M1013-19E3, EUROIII, 140kW/2300rpm, ALLISON T270(with extra cost)
CUMMINS ISDE180-30, EUROIII, 132KW/2500rpm,
ALLISON 2100
CUMMINS DIESEL ISDE180-40, EUROIV, 132KkW/2300rpm, ALLISON 2100(with extra cost)
CUMMINS DIESEL ISB4.5E5207B,EUROV, 152kW/2300rpm, ALLISON T270(with extra cost)





DEUTZ BF4M1013-16E3, EUROIII, 118kW/2300rpm, ALLISON 2100





Normal rated power

118kW





Rated speed

2300 rpm





Discharge capacity

4764cc





Compression ratio

18.0





Intake mode

Turbo-charging intercooler





Exhaust emission

EURO III





Fuel consumption

≯215g/kwh
Less than 30Liter per 100 km





Dry weight

520kgs





Fire unit

Electromagnetic mechanism





Generator

28Volt





Starter

6 Kw, 24 Volt

9

Battery

2 pcs

190H52 Lead-acid battery

10

Transmission

ALLISON 2100 automatic transmission, electronic controlled, or
ALLISON T270 automatic transmission, electronic controlled(with extra cost)





Velocity ratio

Gear

ALLISON 2100

ALLISON T270





Gear 1

3.10

3.49





Gear 2

1.81

1.86





Gear 3

1.41

1.41





Gear 4

1.00

1.00





Reverse

4.49

5.03

King-pin angle of toe-in

King-pin caster angle

Ratio of master drive:

7.633

Wheel rim velocity ratio

1



Defroster in driver's cabin

Model: [CS-13/01]
Motor: DC24V, 240W
Heat output: 7.5KW (when water temp. at 80°C)



Competitive advantage:

1. The well-known international brand components
2. A variety of options to meet clients needs3. Superior manufacturering quality4. Comprehensive after sales service packages and support
