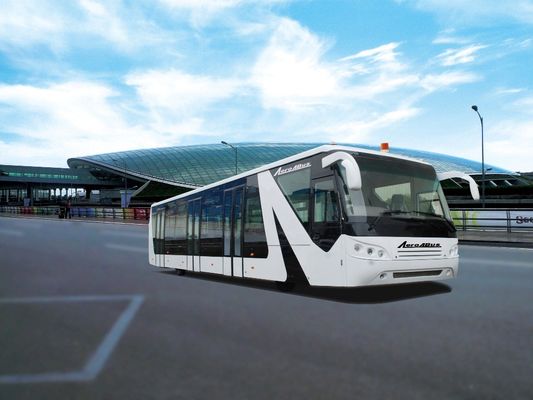

110 Passenger 14 Seat Airport Coaches with Auto Transmission

110 Passenger 14 Seat Airport Coaches with Auto Transmission
110 Passenger 14 Seat Airport Coaches with Auto Transmission

Large Image :  110 Passenger 14 Seat Airport Coaches with Auto Transmission

Product Details:
Place of Origin: China
Brand Name: Aero ABus
Certification: CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
Model Number: Airport Coaches Euro 4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Nude package to suit for long distance marine transportation
Delivery Time: 3 months, flexible
Payment Terms: D/A, T/T, , L/C
Supply Ability: 15 Units per month
Detailed Product Description
Application: Airport Equipment Standard Passenger Seats: 66
Engine: Cummins Standing Area: IATA
Steping Height: 340
High Light:

airport shuttle buses

,

airport bus

Airport Coaches Euro 4 Engine 14 Seats 110 Passengers Auto Transmission





Specification:



No.

Particulars

Specs

1.

Length × Width ×Height

13895mm(±20mm)×3000mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

7100mm

4.

Passenger accommodation capacity

Up to 110 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm

5.

Curb weight

12840kgs

13.

Steering

SANHUAN, 3401ZB3-001H

14.

Rear axle

Specially manufactured high intensity curved axle

15.

Front tire (single tire)

BRIDGESTONE, 12R22.5

16.

Rear tire (twins)

BRIDGESTONE, 9.5R17.5



Steering

SANHUAN, 3401ZB3-001H

Rear axle

Specially manufactured high intensity curved axle

Front tire (single tire)

BRIDGESTONE, 12R22.5

Rear tire (twins)

BRIDGESTONE, 9.5R17.5



Defroster in driver's cabin

Model: [CS-13/01]

Motor: DC24V, 240W

Heat output: 7.5KW (when water temp. at 80°C)





Emergency system



An emergency device for opening door is equipped on each door in the passenger cabin, when the device is activated, there is a voice alarm in the cabin;





Windows in passenger cabin



Full size tempered glass panels mounted in the front and the back of passenger cabin.





OUR SERVICE:



1. Prompt response to clients' inquiry in 24 hours
2. Five years spare parts shipped with the bus
3. Speedy parts dispatch in cooperation with DHL
4. Airport site training in English
