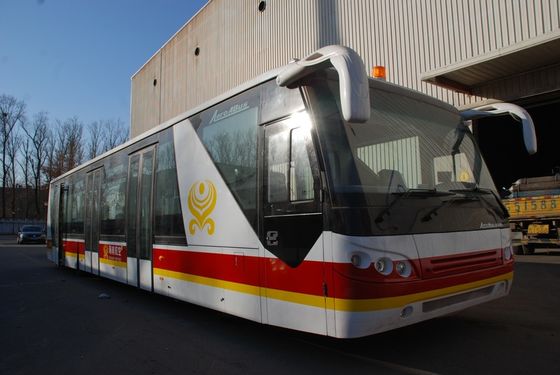

4 Stroke Diesel Engine Shuttle Bus To The Airport With Aluminum Apron

4 Stroke Diesel Engine Shuttle Bus To The Airport With Aluminum Apron
4 Stroke Diesel Engine Shuttle Bus To The Airport With Aluminum Apron

Large Image :  4 Stroke Diesel Engine Shuttle Bus To The Airport With Aluminum Apron

Product Details:
Place of Origin: China
Brand Name: Aero ABus
Certification: CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
Model Number: Low Floor Buses 13m Length
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Nude package to suit for long distance marine transportation
Delivery Time: 4 months, flexible
Supply Ability: 15 Units per month
Detailed Product Description
Application: Airport Passenger Transfer Standard Passenger Seats: N/A
Engine: CUMMINS Minimum Turning Radius: 13m
Standing Area: 24
High Light:

left hand drive bus

,

diesel engine bus

Airport Limousine Bus 3000mm Width With Large Capacity Compartment



Description:



Xinfa Airport Equipment Ltd. (“Xinfa” for short) established in 1997, initially owned by Beijing BOWEI airport facilities management Co. Ltd. (a subsidiary of Beijing Capital International Airport Group Co.). At the date of January 4th 2012, Shenzhen CIMC-Tianda Airport Support Ltd.( the Airport Facilities of CIMC Group) officially became the biggest shareholder by purchase 70% shares. Xinfa registered capital was increased to twenty five million RMB eventually.



Specification:



No.

Particulars

Specs

1.

Length × Width ×Height (external)

13400mm(±20mm)×3000mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

6700mm

4.

Passenger accommodation capacity

Up to 102 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm

5.

Curb weight

12300kgs

6.

The varied height from passenger cabin floor sill to the ground level

270mm~340mm subject to embarkation and/or disembarkation of passengers

7.

Minimum turning radius

≯13500mm

8.

Engine

4-strok, diesel engine

9

Battery

2 pcs

190H52 Lead-acid battery

10

Transmission

ALLISON 2100 automatic transmission, electronic controlled, or

ALLISON T270 automatic transmission, electronic controlled(with extra cost)





Velocity ratio

Gear

ALLISON 2100

ALLISON T270





Gear 1

3.10

3.49





Gear 2

1.81

1.86





Gear 3

1.41

1.41





Gear 4

1.00

1.00





Reverse

4.49

5.03



Rear axle

Specially manufactured high intensity curved axle

Front tire (single tire)

12R22.5

Air conditioning in passenger

compartment

Model: THEMOKING







Intercom system



  1. Public address system
  2. one (1) intercom system is installed at the middle door in the passenger cabin for communication with driver;
  3. Microphone is installed in front of co-drive position for communication between the passenger cabin as well as outside of the bus.
